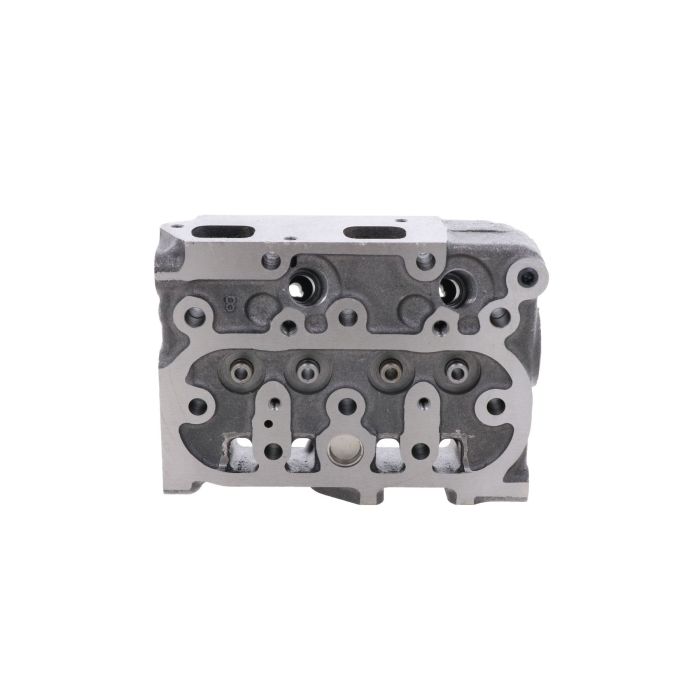

Cylinder head Indirect injection Kubota Z402, Aixam, Airman, Denyo,

SKU: TP14469

check In stock

check Immediately available from our own warehouse
check Best price guarantee
check Rated 8.8/10 via Kiyoh Reviews

Product information Cylinder head Indirect injection Kubota Z402, Aixam, Airman, Denyo,

Tightening tension head bolts M8 x 1.25: 37.2-42.1Nm / 3.8-4.3kg/m
Valve clearance: 0.15-0.18mm

Airman:
DAW180SS,

Aixam:
300, 400, 400.4, 500, 500.4, 721, 741, 751,
Crossover, Crossline, City, Coupe, Scouty,
D-Truck 600,
Evolution,
GTO,
Mega 1, Mega 2, Miniauto 2015, Minivan, Multitruck,
Roadline,

Denyo:
DA3100SS-IV,
DAW-180SS,

Kubota:
G3200,
SR-J1, SR-J2,

Kubota Engine:
Z402,

More Information

SKU TP14469
Brand Kubota
1G946-03040, 1G946-0304-0, 1G94603040, 15821-03040, 15821-0304-0, 1582103040, 15821-03042, 15821-0304-2, 1582103042, 15821-03045, 15821-0304-5, 1582103045, 15821-03048, 15821-0304-8, 1582103048,

Matching products

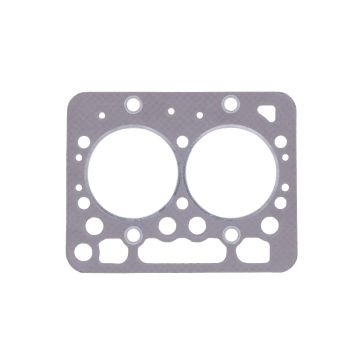

Head gasket Kubota Z402, Aixam, Airman, Denyo,
€19.63 €16.22
check In stock

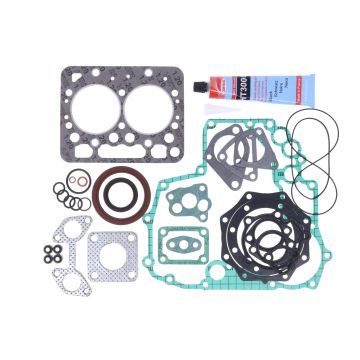

Gasket set Kubota Z402, Aixam,
€98.14 €81.11
check In stock

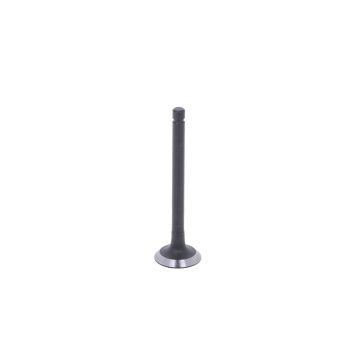

Intake Valve Kubota Z400, Z402, Z482, D662
